Dashboard

The Dashboard is your central hub for real-time monitoring. It opens to the Table view, a scannable overview of every monitored room in the selected building.

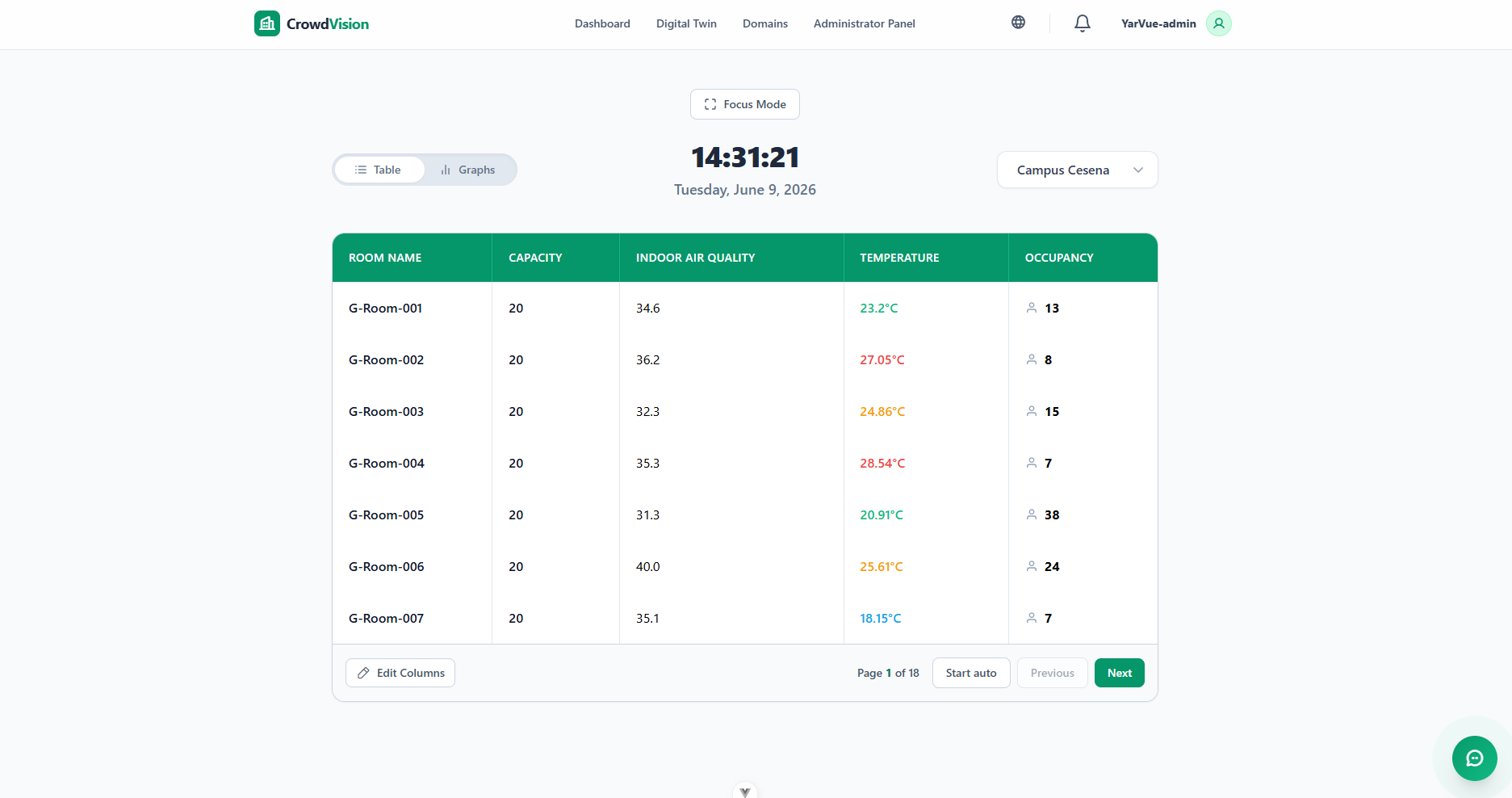

Figure 1 — The dashboard table view. Each row is a room; columns update live as sensors report.

The table view

Each row is one room in the current building, and each column is a property or live measurement. A newly registered building starts with the room name and capacity columns; you can add, remove, reorder, and save columns. See Customizing the Data Table for the full guide.

Occupancy status

CrowdVision derives an occupancy status from how full a room is relative to its capacity.

Choosing a building

If you manage several buildings, switch between them from the selector at the top of the dashboard.

1. Open the building selector dropdown at the top of the view.
2. Pick a building you have access to.
3. The table refreshes instantly with that building’s rooms and live data.

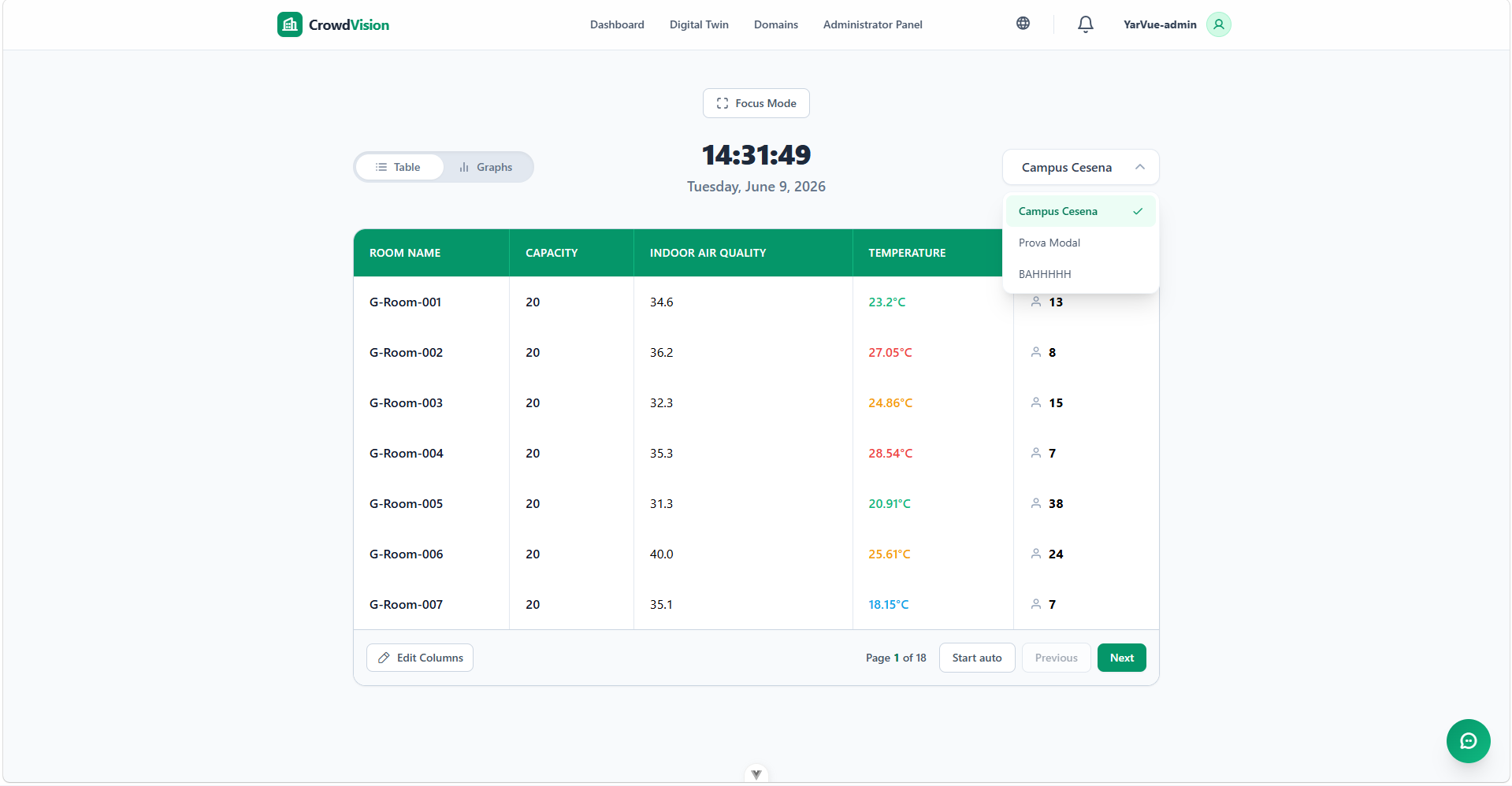

Figure 2 — The building selector lists every building your account can access.

Switching views and Focus Mode

A toggle at the top of the dashboard switches between List (the table) and Graph (the charts — see Charts & Simulator. A Fullscreen control expands the current view into a clean, distraction-free display for wall monitors.

Figure 3 — Switch between List and Graph, or enter Fullscreen (Focus Mode).

• Click Graph to see visual analytics; click List to return to the table.
• Click Fullscreen to fill the screen; press Esc or click the control again to exit.
