Customizing the Data Table
The dashboard table is a live, fully customizable view of every monitored room in the selected building. You control which columns appear, their order, and which sensor readings they show.
Reading the table
Each row is one room. Each cell updates automatically as new readings arrive — no page reload needed. If a sensor is offline or not yet installed, its cell shows a placeholder (-- or 0) until data starts flowing.
Entering edit mode
Click Edit in the table’s bottom control bar. This is available only if you have administrator rights for the current building’s domain.
In edit mode each column header gains controls:
| Control | Purpose |
|---|---|
| Grip handle (on the left) | Drag to reorder the column. |
| ✕ badge (top-right) | Remove the column. |
| ▼ caret (next to the title) | Open the swap menu to replace the column. |
| ＋ button (far right of the header row) | Add a new column. |

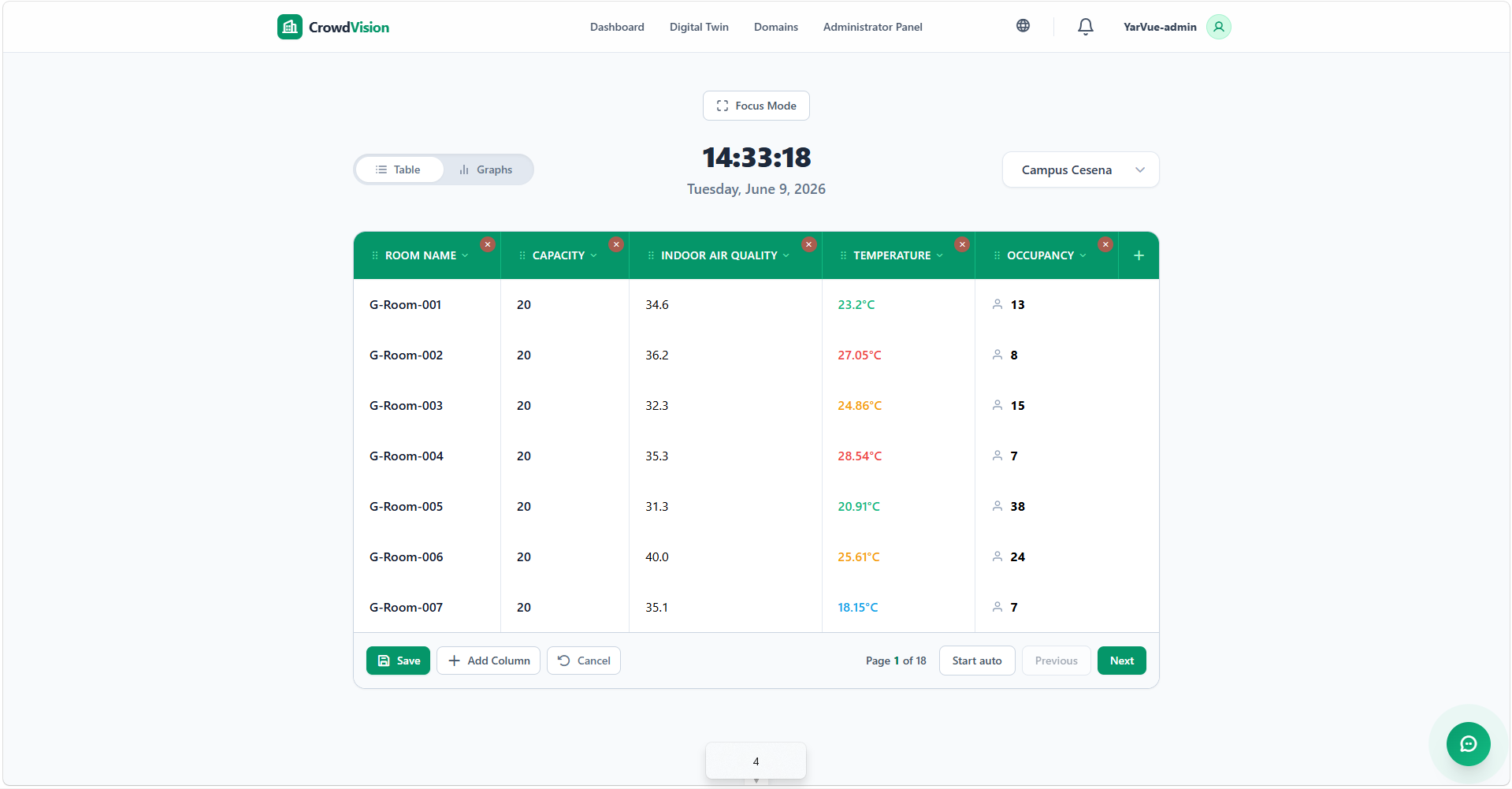

Figure 1 — In edit mode, each header shows a grip handle, a ✕ to remove, a ▼ to swap, and a ＋ to add.
When you are done, click Save to keep your layout or Cancel to discard changes.
Adding a column
- Click Edit.
- Click the ＋ at the right end of the header row. A panel slides open.
- The panel shows every metric not already in your table, as chips.
- Click a chip to append that column.
- Click Save.

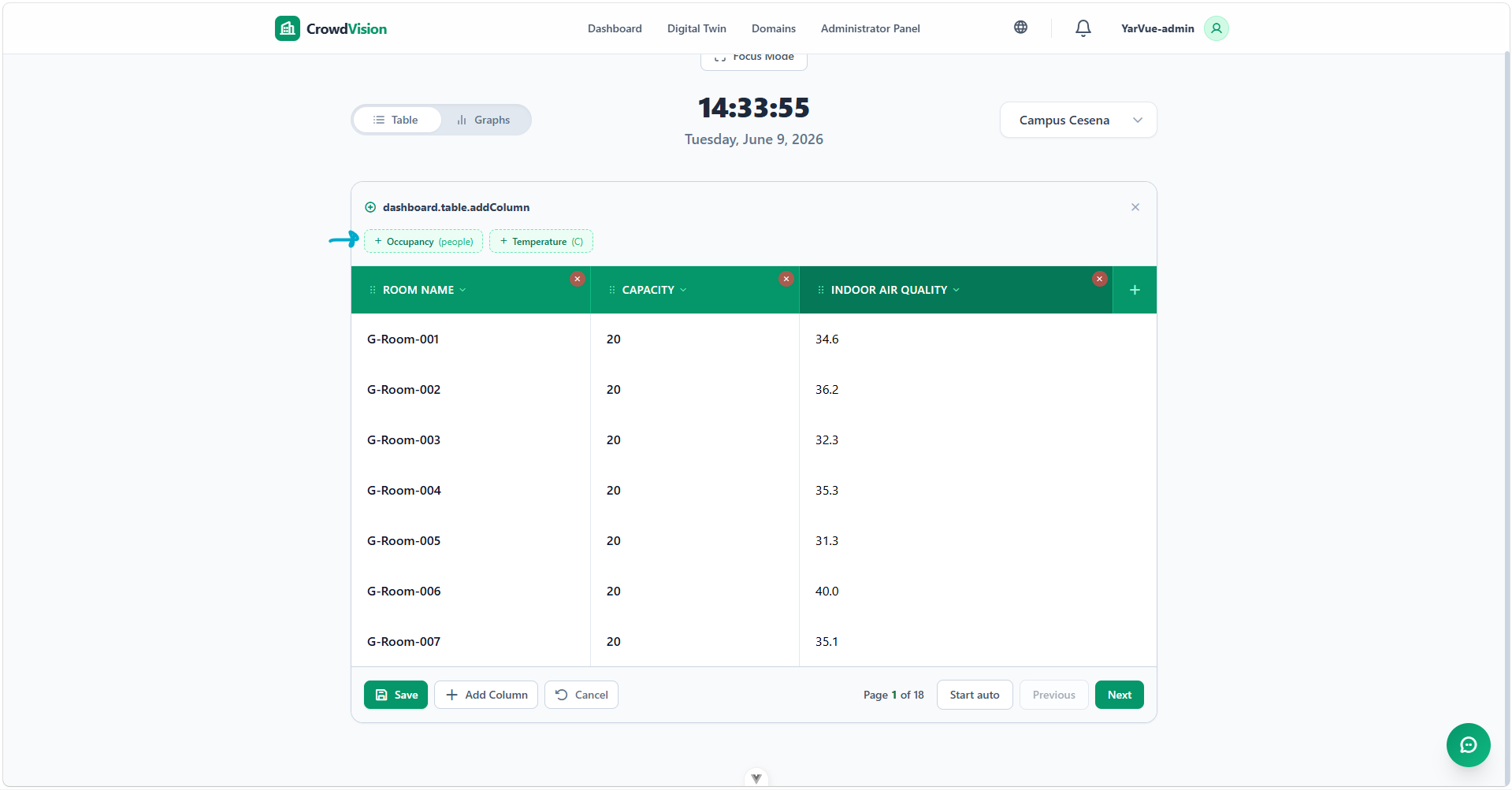

Figure 2 — The add-column panel lists every available metric as a chip.
Live data starts immediately
As soon as a sensor column is saved, CrowdVision begins routing that data to your dashboard. If a sensor for that metric is active in the building, the new column populates with live readings right away.
Removing a column
- Enter edit mode.
- Click the ✕ badge on the column header.
- The column disappears from the preview. Click Save to apply.
Swapping a column
To replace one column with a different metric without disturbing the others:
- Enter edit mode.
- Click the column header title (not the ✕ or grip). A dropdown appears.
- The dropdown lists every metric not already shown (so you cannot create duplicates).
- Click an entry to replace the column.
- Click Save.
Figure 3 — Clicking a header title opens a menu of metrics you can swap in.
Reordering columns
- Enter edit mode.
- Grab a column by its grip handle (or click and hold the header).
- Drag left or right; the target position highlights.
- Release to drop, then click Save.
Your layout is remembered
Columns, their order, and your selected metrics are saved per building. The next time you open this building — even after a refresh or signing out and back in — the table loads exactly as you left it.
Pagination and autoplay
When a building has many rooms, the table paginates.
- Use Prev and Next in the bottom bar to move between pages.
- Click Play to enable autoplay: the table advances every few seconds and loops back to the start — ideal for a wall monitor. Click Play again to stop.
